Complete 22.75” Cut-Off GOSS SSC & DGM 430 Presslines and associated, spare, connecting parts, and miscellaneous equipment:
Plant Production Equipment
Description
Complete 22.75” cut-off GOSS SSC & DGM 430 Presslines
Plus associated, spare, connecting parts, and miscellaneous equipment:
Assets Lists

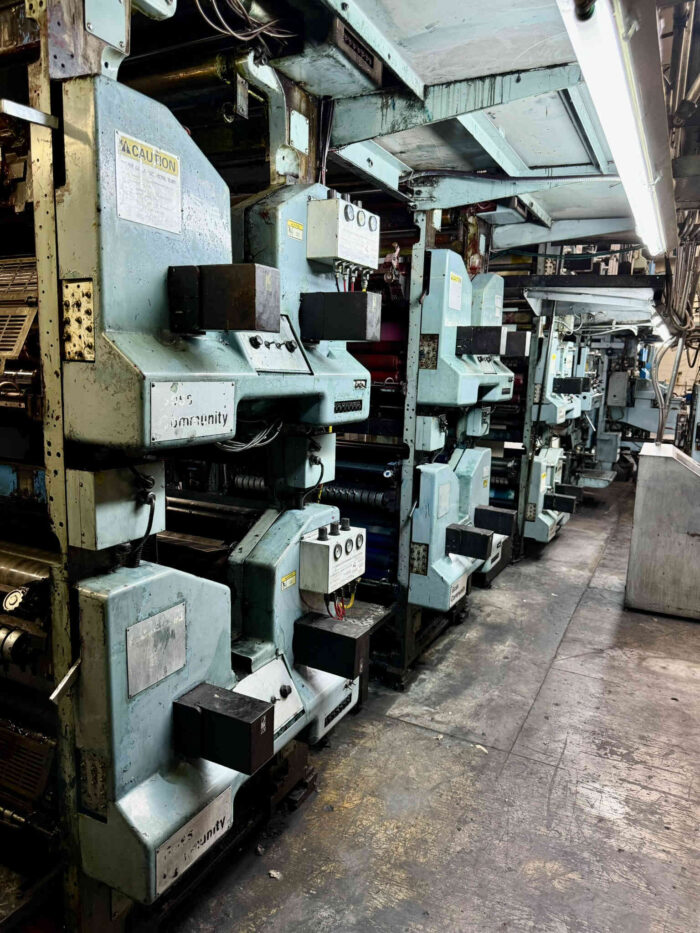

| 2003 – Goss SSC 4-High (#1) | Standard web break detector, QTI Motorization, |
| S/N’s = 333,338,339,336 | Slot gap plate lock-up, Tbar blanket lock-up, Ink Levelers |
| 6 air and 6 conventional bustle wheels, 22.75″ Cut-off | |
| 2003 – Goss SSC 4-High (#2) | Standard web break detector, QTI Motorization, |
| S/N’s = 337, 334, 335,340 | Slot gap plate lock-up, Tbar blanket lock-up, Ink Levelers |
| 4 conventional bustle wheels, 22.75″ Cut-off | |
| 2002 – DGM-430 4-High (#6) | Standard web break detector, QTI Motorization, |
| S/N’s = 2275-A152, 2275-A132, 2275-A131 | slot gap plate lock-up, Reel Rod blanket lock-up, Ink Levelers |
| 2275-A139 | 3 conventional bustle wheels, 22.75″ Cut-off |
| 2000 – Goss SSC 4-High (#5) | Standard web break detector, slot gap plate lock-up, |
| S/N’s = 335 F1, 109 F2, 110 F3, 111 F4 | Tbar blanket lock-up, QTI Motorization, Ink Levelers |
| 3 conventional bustle wheels, 22.75″ Cut-off | |
| 1998 – Goss SSC 4-High (#4) | Standard web break detector, slot gap plate lock-up, |
| S/N’s = 2134 F1, 2155 F2, 2736 F3, | Tbar blanket lock-up, QTI Motorization, Ink Levelers |
| 2137 F4 | 2 conventional bustle wheels, 22.75″ Cut-off |
| 1989 – Goss SSC 4-High (#3) | Standard web break detector, QTI Motorization, |
| S/N’s = 770 B1, 771 B2, 772 B3, 773 B4 | On the nose or Slot gap plate lock-up, Tbar blanket lock-up, |
| Ink Levelers, Heavy duty driveshaft 22.75″ Cut-off | |
| 1984 – Goss Stacked Unit (2 High) | Running circumferential register, standard web break |
| S/N = 99114 195 LB2964, S/N = | detector, 22.75″ Cut-off |
| 1202 10 LB4979 | |
| PRINT REGISTER SYSTEM | |
| Quad Tech – Print Register System | Icon Base Multicam RGS V – 10 Cameras |
| (5 – 4 Highs with 2 cameras each) | |
| FOLDERS | |
| 2007 – DGM-1035 Jaw Folder (#1) | Half & Qtr Fold, 72 degree angle former board, |
| 3 – web tension trolleys, Crosshead perforator | |
| 1 – dual fold plow folder, 1 – single fold Plow folder | |
| 1995 – Goss SSC 503 Folder S/N = | Half & Qtr Fold, Motorized compensators, |
| DR 3204 (#2) | top iron assembly, RTF driven score slitter, |
| 3 – web tension trolleys | |
| Dual fold plow Folder with Score Slitter | |
| 1984 – Goss SSC-427 Folder S/N = PR-371-14 (#3) | Half & Qtr Fold, 3 – web tension trolleys |
| Dual fold plow folder | |
| SPLICERS | |
| 2003 – Left Hand Martin Splicer (#4) | Dual unwind, Motorized sidelay, Electric Hoist |
| EC 1338 S/N = 6544 on unit | Half web capable, UPGRADED to 1300 FPM |
| 2002 – Left Hand Martin Splicer EC 1338 – | Dual unwind, Remote Sidelay control, |
| S/N = 16649 (#6) | electric hoist, Half web capable, UPGRADED to 1300 FPM |
| (Currently set
up as tandem with 3188A29) |
|
| 1998 – Right Hand Martin Splicer EC838 – | Dual unwind, Pneumatic Hoist, Half web capable, |
| S/N = 5199A1 (#3) | motorized sidelay, Web break detection, |
| (Currently seup as tandem with 5199 ) | UPGRADED to 1300 FPM |
| 1996 – Left Hand Martin Splicer EC-838 – | Dual unwind, Pneumatic Hoist, Half web capable, |
| S/N = 5199 (#2) | motorized sidelay, Web break detection, |
| (Currently seup as tandem with 5199A1 ) | UPGRADED to 1300 FPM |
| 1992 – Right Hand Martin Splicer EC-838 – | Dual unwind, Pneumatic Hoist, Half web capable, |
| S/N = 4576 (#1) | motorized sidelay, Web break detection, |
| UPGRADED to 1300 FPM | |
| 1992 – Right Hand Martin Splicer | Dual unwind, Remote Sidelay control, |
| EC1038 S/N = 3188A2 (#5) | electric hoist, Half web capable, UPGRADED to 1300 FPM |
| (Currently seup as tandem with 16649) | |
| UV SYSTEM | |
| 2004 – Prime UV Optimum Series System, | Includes Prime Smart System 2100 Control Platform |
| S/N = S21-M420434 | 4 – 42″ 400 Watt lamps, |
| Model S21-380236 Transformer, 110 amps | |
| 2007 – Prime UV Optimum Series System, | Includes Prime Smart System 2100 Control Platform |
| S/N = S21-M380236 | 2 – 38″ 600 watt lamps |
| Model s21-M420434 Transformer, 131 amps | |
| RIBBON DECKS | |
| 2002 – Tennessee Ribbon Deck (#3) | Motorized angle bars (1 in 2 out) |
| No Serial Number | |
| 2000 – Tennessee Ribbon Deck (#1) | Motorized angle bars (1 in 2 out) |
| No Serial Number | |
| 1986 – Jardis Ribbon Decks (#4) | Bypass Ribbon Deck, motorized angle bars (1 in 3 out) |
| No Serial Number | |
| 1986 – Jardis Ribbon Decks (#6) | Bypass Ribbon Deck, motorized angle bars (1 in 3 out) |
| No Serial Number | |
| Jardis Ribbon Deck (#2) | Bypass Ribbon Deck, motorized angle bars (1 in 3 out) |
| Model 6/12, S/N = 890902-1 | |
| Cary Ribbon Deck Jardis Angle Bars (#5) | Bypass Ribbon Deck, motorized angle bars (1 in 3 out) |
| RD II S/N = 28391082 | |
| MOTORS | |
| Baldor 150 HP DC Motor (A1) | Model 96A102-0116, S/N = N0408270002 |
| Baldor 100 HP DC Motor (B1) | Model P36801410155, S/N = N061/0264-010720-03 |
| Baldor 100 HP DC Motor (B2) | Model P36801410155, S/N = N091/0209-011001-02 |
| Baldor 75 HP DC Motor (A2) | Model P36601170172, S/N = N0312100002 |
| Baldor/Fincor 75 HP DC Motor (C1) | Model P366004S0B03GC0, S/N = N129/0341-000117-08 |
| PLATE PUNCH | |
| 2001 – Nela Ternes | Infinity Series inline self-centering |
| S/N = MPD-0113-0275 | Model C16D82WN |
| PLATE BENDERS | |
| 2010 – Central Graphics plate bender | Heavy Duty, on the nose (old style) and slot gap |
| Plate bender | On the nose (old style) lockup for trailing edge |
| TURN BARS | |
| 4-Web motorized turn bars | |
| 2-web non motorized turn bars | |
| WATER CIRCULATORS | |
| 2003 – Masterflo Recirculator | Model ES-3, 2 – 1/2 hp feed pumps, 40 gal tank |
| Quad bag filtration | |
| 2007 – Masterflo Recirculator | Model ES-3, 2 – 1/2 hp feed pumps, 40 gal tank |
| Quad bag filtration | |
| Masterflo Recirculator | Model ES-C, 1/2 hp, 20 gal tank |
| S/N = 127007 | |
| DRIVES | |
| Fincor Drive | Model #2191C-60/75-40C |
| S/N = 48029 | 75 hp upgrade to 150 hp, 3120M SIX-SCR Motor control |
| Fincor Drive | Model #2191B-60/75-40B |
| S/N = 46329 | 75 hp, 3120M SIX-SCR Motor control |
| Fincor Drive | Model #2091A-75-38A |
| S/N = 52932 | 75 hp, 3120M SIX-SCR Motor control |
| Fincor Drive | Model #2191C-60/75-38C |
| S/N = 47336 | 75 hp, 3120M SIX-SCR Motor control |
| Fincor Drive | Model #2191C-60/75-40C |
| S/N = 46483 | 75 hp, 3120M SIX-SCR Motor control |
| STACKERS | |

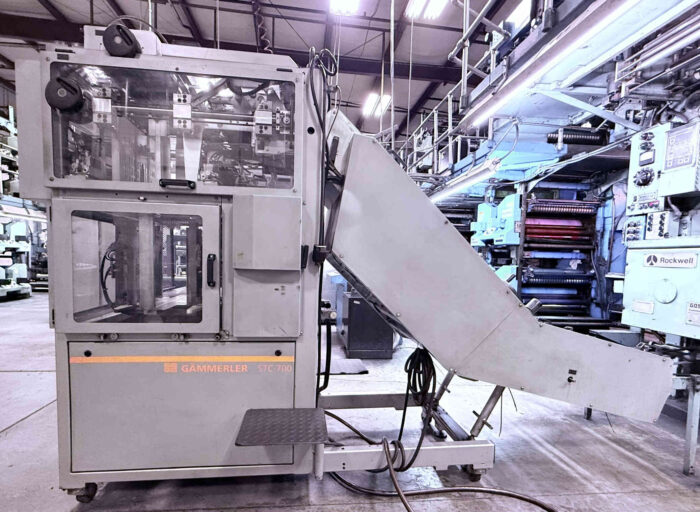

| 2004 – Gammerler STC-700 | 13″ x 19.7″ page size, 15.7″ stack height |
| Compensating Stacker (#2) | 50,000 pieces max per hour |
| S/N = 5649/2004 | |
| 2003 – Gammerler STC-700 | 13″ x 19.7″ page size, 15.7″ stack height |
| Compensating Stacker (#1) | 50,000 pieces max per hour |
| S/N = 3801/2002 | |
| 2002 – Gammerler STC 700 | 13″ x 19.7″ page size, 15.7″ stack height |
| Compensating Stacker (#3) | 50,000 pieces max per hour |
| S/N = 4101/2002 | |
| 2002 – Gammerler STC 700 | 13″ x 19.7″ page size, 15.7″ stack height |
| Compensating Stacker (#4) | |

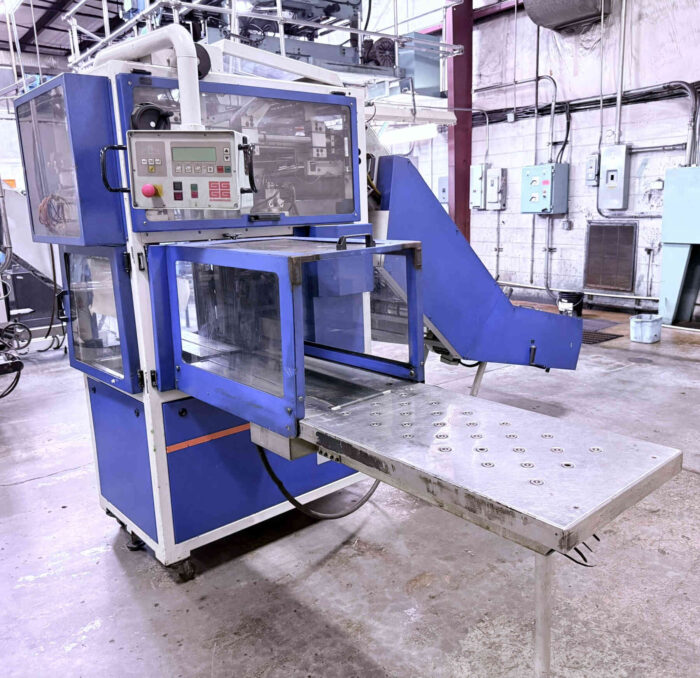

| 1998 – Baldwin Stobb 205 | |
| Count-0-Veyer S/N – 2050118 | |
| BINDERY EQUIPMENT | |
| 1988 – Muller Martini 335 | 8 Station Track, 6 Pockets, 1 Cover Feeder, |
| Inserter Stitcher Trimmer | 890 Trimmer, with 310 Compensating stacker |
| S/N = 9911911 C218 | |
| 1988 – Muller Martini 227S inserter | One main jacket and 3 insert feeders, opening station |
| S/N = 9908882 C008 | closing/delivery station, with 310 Compensating stacker |
| COMPUTER TO PLATE (CTP) | |
| 2003 – Creo CTP Trendsetter News 50 | Prinergy 2.1 Access System, Trendsetter News Plate Rotator, 47 Broadsheet plates per hour |
| with Print Console Package | |
| S/N = NM805 | |
| 2013 – Kodak CTP Trendsetter News S- | |
| AL With Print EVO | Prinergy 2.1 Access System, Trendsetter Plate Rotator |
| S/N = TT2554 | |
| STRAPPERS | |
| Mosca Strapper | Arch 500 x 400 MM |
| RO-M-P4, S/N = 61042 | Up to 50 straps per minute |
| (Needs Control Board) | |
| Mosca Strapper | Arch 500 x 400 MM |
| RO-M-P4, S/N = 86079 | Up to 50 straps per minute |
| Mosca Strapper | Arch 500 x 400 MM |
| RO-M-P2, S/N = 61211 | Up to 50 straps per minute |
| Clamp Truck | |
| 1998 – Toyota clamp truck | Model = 52-6FGCU30, Cascade roll clamp |
| S/N = 61047 | |
| Ink Pumps | |
| 4 – Lincoln Ink Pumps (C,M,Y,K) | Model # 84808, 100 psi maximum |
| Air Compressor | |

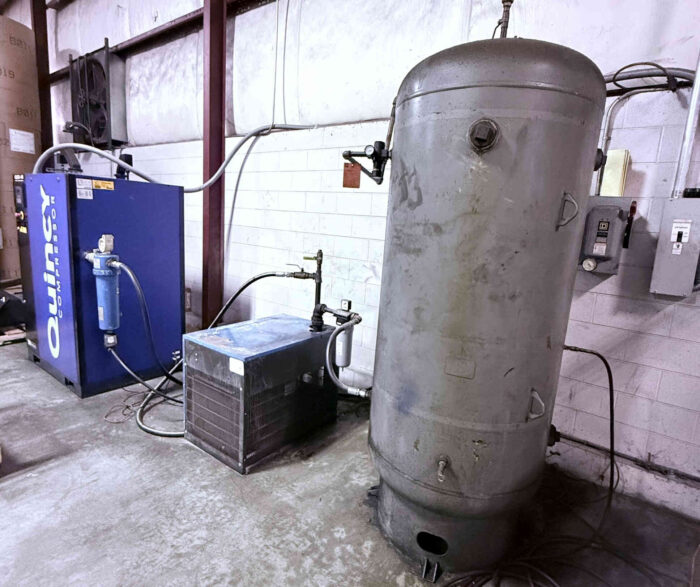

| 2021 – Quincy Air Compressor | QGD-40 Rotary Air Compressor 460/3/60 |
